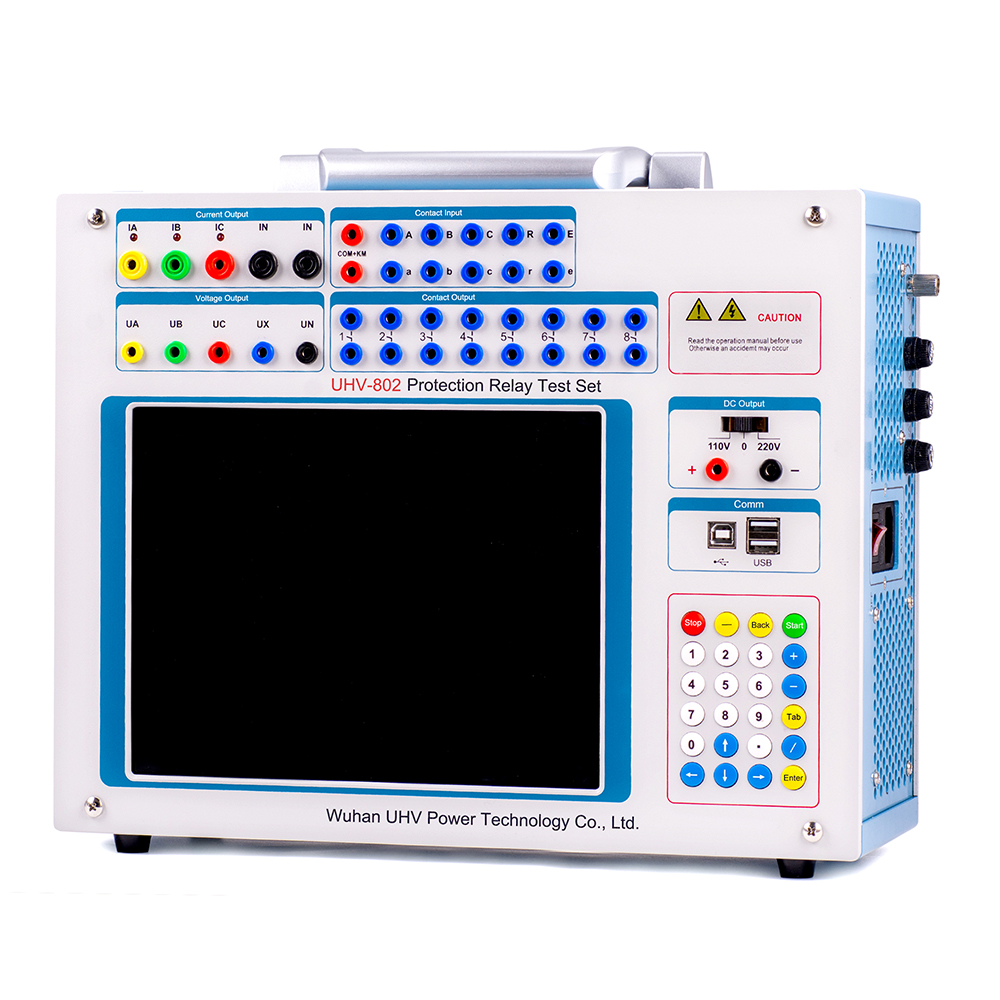

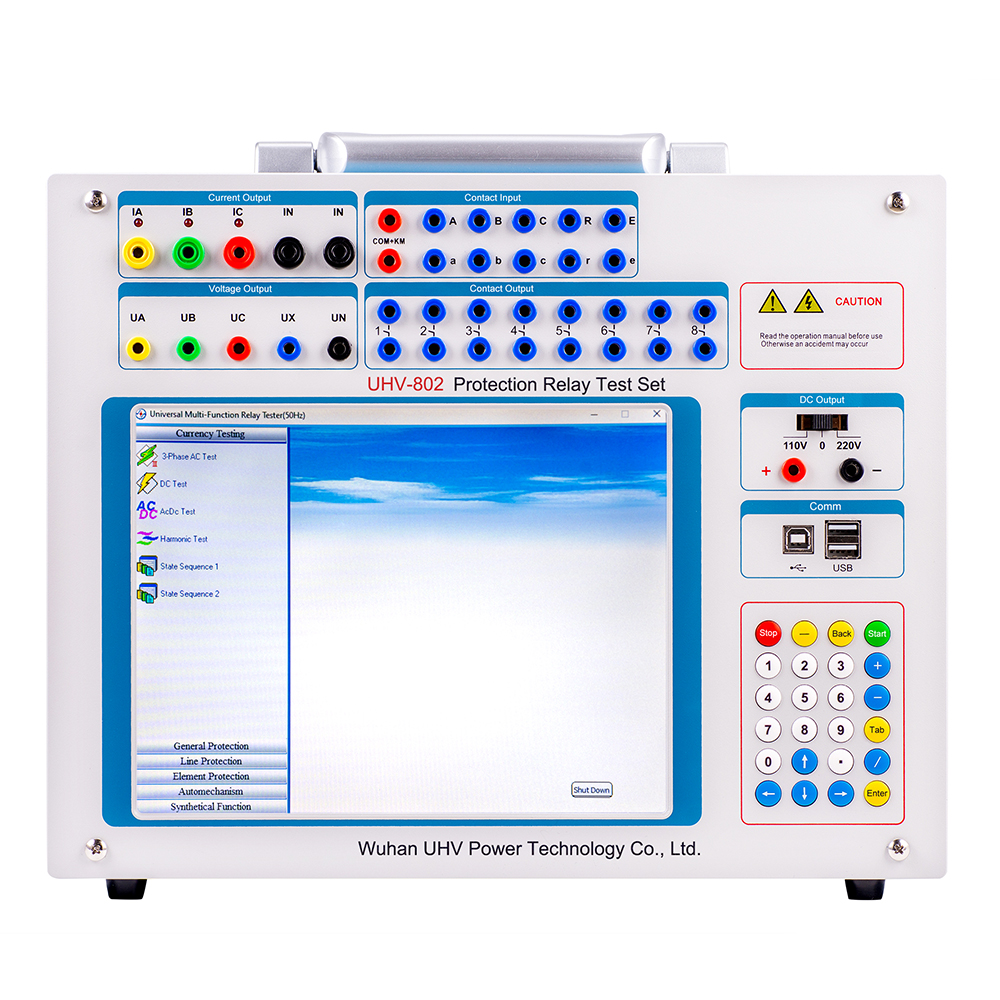

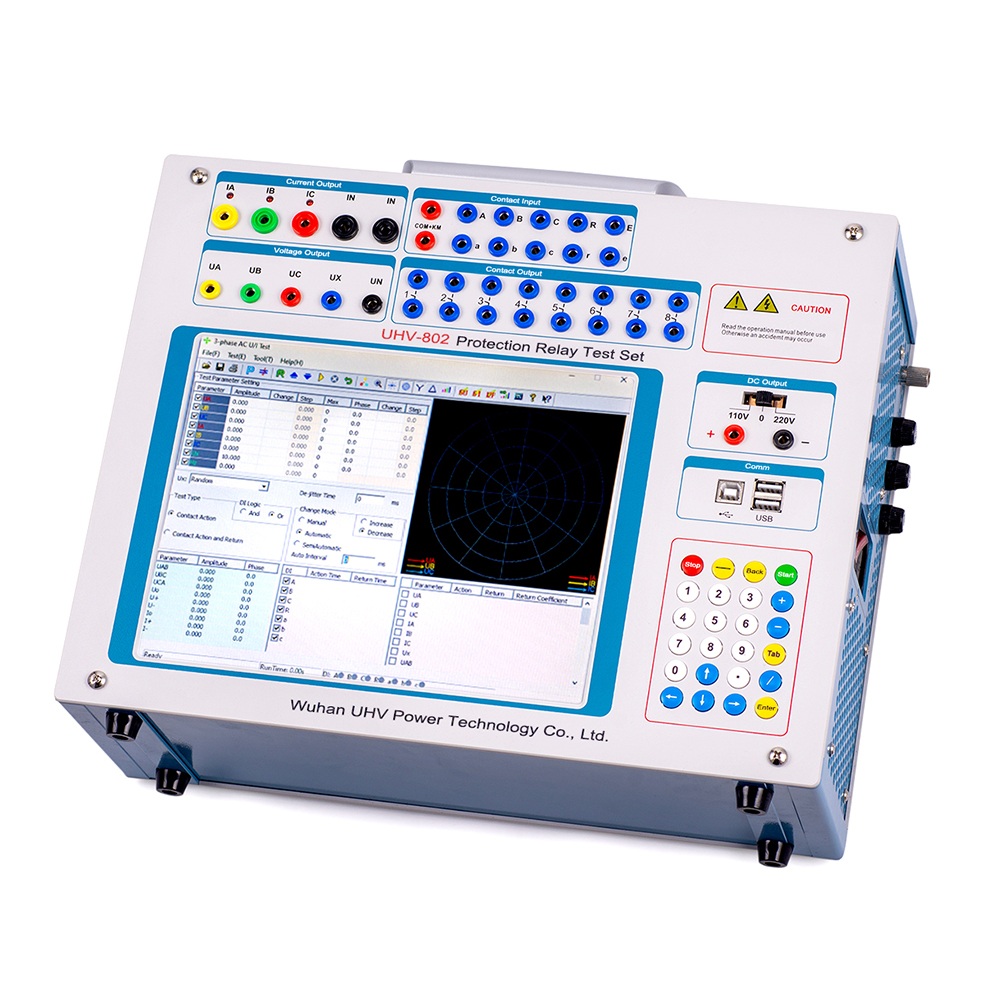

The UHV-803 Three phase relay protection tester is a new miniaturized microcomputer relay protection tester based on DL/T624-1997 "Technical Conditions for Microcomputer relay Protection test Device" issued by the Ministry of Power, which is widely listened to the views of users, summarized the advantages and disadvantages of similar domestic products, and made full use of modern advanced microelectronics technology and devices. The microcomputer relay protection tester manufactures adopts the advanced structure of independent operation of a single machine and can also be connected to a laptop computer. The main machine adopts DSP+FPGA structure, true 16-bit DAC output, built-in new modular high-fidelity linear high-power amplifier, 8.4 inch TFT true color display with resolution of 800×600 and industrial keyboard and mouse. WindowsXP operating system, powerful. Small size, high precision. It not only has the superior performance and advanced function of the large tester, but also has the advantages of small, flexible, easy to operate, high reliability, and high performance-price ratio. It is a good tool for continuity workers.
Product functions
Three-phase current output
Supports independent three-phase current output, meeting conventional relay protection testing requirements.
Four-phase voltage output
Supports three-phase voltage and zero-sequence voltage output, meeting the testing requirements of various protection devices.
High-current output
Three-phase currents can be connected in parallel, with maximum output current up to 120A, suitable for high-current protection testing.
High-precision testing
Adopts 16-bit DAC high-precision digital conversion technology, improving current and voltage output accuracy.
DSP + FPGA digital control
Uses DSP and FPGA cooperative control to achieve high-speed, stable, and precise signal processing and waveform output.
High-fidelity linear power amplification
Adopts high-fidelity linear power amplifiers, with stable output waveforms and low distortion, reducing high-frequency and medium-frequency interference.
Fault simulation function
Can simulate different types of power system faults, providing test signals for relay protection operation characteristic testing.
Protection setting verification
Supports verification of relay protection device settings and operation parameters, quickly determining whether the protection device meets the set requirements.
 |  |  |
ഉൽപ്പന്ന സവിശേഷതകൾ
1. Flexible Multi-Channel Output
Provides configurable 4-phase voltage and 3-phase current outputs, supporting standard testing modes while enabling specialized transformer differential and fast transfer switching tests.
2. Computer-Controlled Operation
Features direct PC connectivity via laptop or desktop for stable and efficient test execution.
3. Premium Linear Amplification
Employs high-fidelity linear amplifiers (non-switching type) to ensure clean power delivery without high/medium frequency interference across all current ranges.
4. Advanced Portable Host
DSP-controlled output with high-speed processing delivers precise waveforms in a compact, lightweight design ready for immediate field deployment.

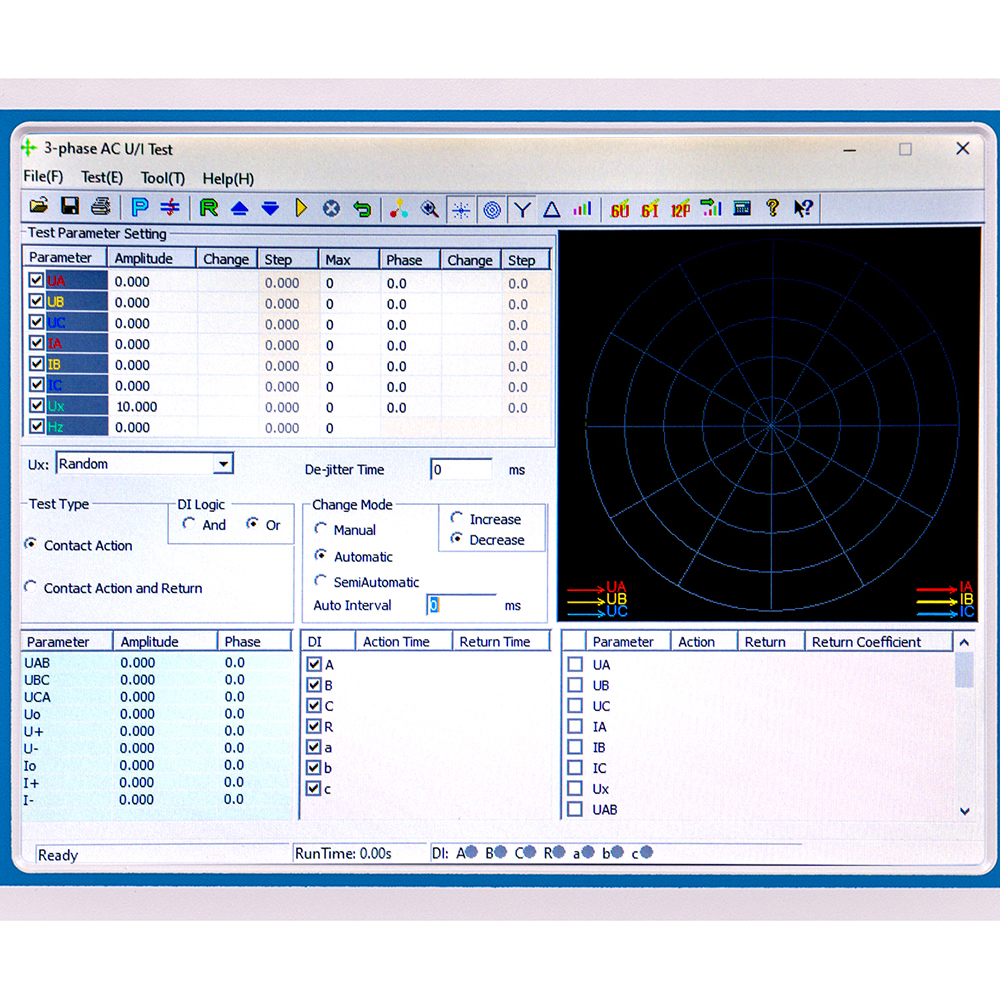

5. Intelligent Test Software
Automates complex calibration tasks with capabilities including protection setting verification, fault replay, data logging, vector diagrams, and report generation.
6. Dual DC Power Supply
Integrated 110V/220V DC outputs for auxiliary power requirements.
7. Expanded Connectivity
Includes USB ports for seamless device communication and data transfer.
8. Comprehensive Protection System
Incorporates thermal management, soft-start circuitry, and diagnostic safeguards for reliable operation.
ഉൽപ്പന്ന പാരാമീറ്ററുകൾ
എസി കറന്റ് ഔട്ട്പുട്ട്
| ഔട്ട്പുട്ട് പ്രിസിഷൻ | 0.2 ഡിഗ്രി |
| ഘട്ടം കറന്റ് ഔട്ട്പുട്ട് (ഫലപ്രദമായ മൂല്യം) | 0~40A |
| 3 ഫേസ് പാരലൽ കറന്റ് ഔട്ട്പുട്ട് (ഫലപ്രദമായ മൂല്യം) | 0~120A |
| Phase current long-term allowable working value (effective value) | 10എ |
| Maximum output power of phase current | 420VA |
| 3 സമാന്തര വൈദ്യുതധാരയുടെ പരമാവധി ഔട്ട്പുട്ട് പവർ | 900VA |
| 3 സമാന്തര വൈദ്യുതധാരയുടെ അനുവദനീയമായ പരമാവധി പ്രവൃത്തി സമയം | 10സെ |
| ഫ്രീക്വൻസി ശ്രേണി (അടിസ്ഥാനം) | 0~1000Hz |
| ഹാർമോണിക് സമയം | 1~20 |
DC നിലവിലെ ഔട്ട്പുട്ട്
| ഔട്ട്പുട്ട് പ്രിസിഷൻ | 0.5 ഡിഗ്രി |
| ഔട്ട്പുട്ട് കറന്റ് | 0～±10A/phase, 0～±30A/3 parallel |
| Maximum output load voltage | 20V |
എസി വോൾട്ടേജ് ഔട്ട്പുട്ട്
| ഔട്ട്പുട്ട് പ്രിസിഷൻ | 0.2 ഡിഗ്രി |
| ഘട്ടം വോൾട്ടേജ് ഔട്ട്പുട്ട് (ഫലപ്രദമായ മൂല്യം) | 0~120V |
| ലൈൻ വോൾട്ടേജ് ഔട്ട്പുട്ട് (ഫലപ്രദമായ മൂല്യം) | 0~240V |
| ഫേസ് വോൾട്ടേജ് / ലൈൻ ഫേസ് ഔട്ട്പുട്ട് പവർ | 80VA/100VA |
| ഫ്രീക്വൻസി ശ്രേണി (അടിസ്ഥാനം) | 1~1000Hz |
| ഹാർമോണിക് സമയം | 1~20 |
ഡിസി വോൾട്ടേജ് ഔട്ട്പുട്ട്
| ഔട്ട്പുട്ട് പ്രിസിഷൻ | 0.2 ഡിഗ്രി |
| ഘട്ടം വോൾട്ടേജ് ഔട്ട്പുട്ട് ശ്രേണി | 0～±160V |
| ലൈൻ വോൾട്ടേജ് ഔട്ട്പുട്ട് ശ്രേണി | 0～±320V |
| ഫേസ് വോൾട്ടേജ് / ലൈൻ ഫേസ് ഔട്ട്പുട്ട് പവർ | 70VA/140VA |
Switch quantity and time measurement
| note | ||
| Switching input | 10 road | Null contact:1~20mA, 24V potential contact access:"0":0~+6V; "1": +11V to +250V |
| potential contact access:"0":0~+6V;"1":+11V~+250V | ||
| Switching output | 8 pair | DC：220V／0.2A；AC：220V／0.5A |
| Time measurement | measurement range is 0.1ms ~ 9999s;measurement accuracy is 0.1ms | |
Volumetric weight
| Industrial control type | |
| Overall dimension | 375×305×140mm³ |
| Single weight | 13 കിലോ |
| വൈദ്യുതി വിതരണം | AC 220V±10%, 50/60Hz |
| ആംബിയന്റ് താപനില | -10℃~+50℃z |
Application Scenarios
Substation relay protection testing
Used for commissioning, verification, setting value validation, and operation characteristic testing of relay protection devices in substations.
Power plant relay protection testing
Used for performance testing and operation maintenance of generators and related relay protection systems.
Power system on-site commissioning
Suitable for power engineering sites, performing installation commissioning, functional verification, and pre-commissioning testing of relay protection devices.
Transformer protection testing
Used for testing and verification of protection functions such as transformer differential protection and overcurrent protection.
Relay and protection device verification
Used for testing various current, voltage, time, and operation characteristics, verifying the working performance of relays and protection devices.
Power equipment fault simulation
Tests the operation logic and response performance of protection devices by simulating different types of power system faults.
Power laboratories
Used for performance testing, R&D verification, technical research, and test data analysis of relay protection equipment.
Power equipment maintenance and servicing
Used for routine maintenance, fault diagnosis, and periodic verification of protection devices in power systems, ensuring reliable equipment operation.
