ഉൽപ്പന്ന ആമുഖം

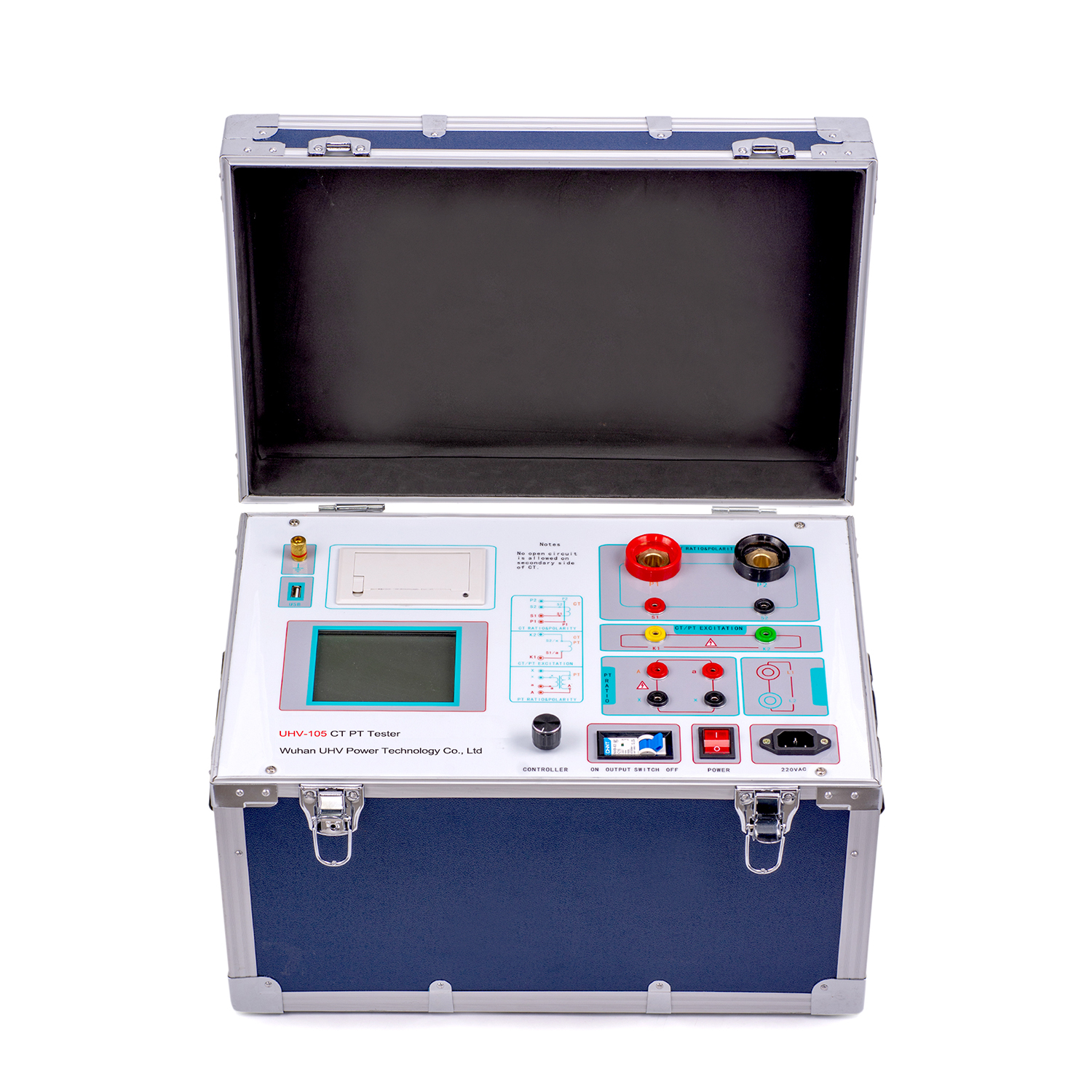

CT/PT TESTER is mainly used for field testing of P class CT and PT. The test items mainly include excitation characteristic, transformation ratio, polarity, Degauss, 5％ and 10％ error curves, secondary circuit check, withstand test of power frequency alternating current and secondary load. Adopt LCD, self-equipped minitype printer supporting field printing; supporting to use USB flash disk to dump data, with simple and convenient operation.
Product Features & Advantages
1. Standards Compliance
Meets GB 20840.3-2013 & GB 20840.2-2014 requirements for professional CT/PT verification.
2. Complete Testing Solution
Performs all test items independently without external devices - truly all-in-one functionality.
3. Instant Documentation
Built-in high-speed micro printer delivers immediate hardcopy results at test sites.
4. Intelligent Control
User-friendly operation via smart controller with intuitive graphical interface.
5. Visual Display
Large LCD screen clearly presents test data and graphical results.
6. Automatic Calculations
Precisely determines CT/PT excitation knee points per regulatory standards.
7. Error Curve Generation
Automatically plots both 5% and 10% error curves for compliance analysis.
8. Robust Data Storage
Retains 3,000 test records with power-loss protection.
9. Data Portability
USB interface enables easy data transfer and professional Word report generation.
10. Field-Ready Design
Compact form factor (<22kg) optimized for mobile operation.
11. Comprehensive Protection
Features multiple safeguards for equipment and operator safety.
ഉൽപ്പന്ന പാരാമീറ്ററുകൾ
Function Table
| I. Current Transformer (CT) | II. Voltage Transformer (PT) |
| 1. Magnetization Curve | 1. Excitation Characteristic Test |
| 2. Transformation Ratio Test | 2. Transformation Ratio Test |
| 3. Polarity | 3. Polarity |
| 4. 5％ and 10％ error curve | 4. Withstand Test of Power Frequency |
| 5. Current Injecting | 5. Degauss |
| 6. Degauss | 6. Calculation of Knee Point Value |
| 7. Withstand Test of Power Frequency Alternating Current | |
| 8. Automatic Calculation of Excitation Knee Point Value |
സാങ്കേതിക പാരാമീറ്റർ പട്ടിക
| പ്രധാന സാങ്കേതിക പാരാമീറ്ററുകൾ | |
| Operational Power Supply | AC220V±20V, 50～60Hz |
| Equipment Power Supply Output Waveform | സൈൻ വേവ് |
| Single Machine Output Voltage of Excitation Characteristic | 0~1200V |
| Excitation Output Current Set | 0~20A |
| Single Machine Output Current of Transformation Ratio Test | 0~1000A |
| CT ratio measurement range | 5~25000A/5A(5000A/1A) |
| PT ratio measurement range | 1～500KV |
| പിശക് | ≤0.5%(0.2%*Reading+0.3%*Range) |
| ഓപ്പറേറ്റിങ് താപനില | -10℃~+40℃ |
| ആപേക്ഷിക ആർദ്രത | <90RH% |
| ഉയരം | ≤1000m |
| Overall Dimension(Length*Width*Height) | 450*280*260(mm) |
| ഭാരം | ≤30Kg |
Application Scenarios
The transformer VA ratio polarity comprehensive tester is primarily used in the detection, acceptance, and maintenance scenarios of current transformers (CT) and voltage transformers (PT) in power systems, including substations, power plants, transmission and distribution lines, power equipment manufacturers, and power testing institutions. In new construction projects, it can be used for factory inspection, installation commissioning, and pre-commissioning acceptance of transformers. In operation and maintenance, it can be used for periodic preventive testing to inspect transformer ratio, polarity, excitation characteristics, and winding condition, promptly identifying issues such as core anomalies and winding faults. During fault handling, it can be used for fault diagnosis and cause analysis, ensuring the accurate and reliable operation of relay protection, metering, and automation systems. In addition, the device is also widely used in power research, technical supervision, and equipment maintenance, making it an important testing tool for ensuring the safe and stable operation of the power grid.
