Circuit breakers, as crucial protective devices in power systems, have a stable performance that directly affects the safe operation of the entire system. Have you ever felt a headache about the various "temperaments" of circuit breakers? Do those complex parameters and testing processes deter you? Don't worry, today we will talk about how to use a switch characteristic tester to make these "big guys" obediently listen!
Unveiling the "Switch Characteristics Tester": What is it?

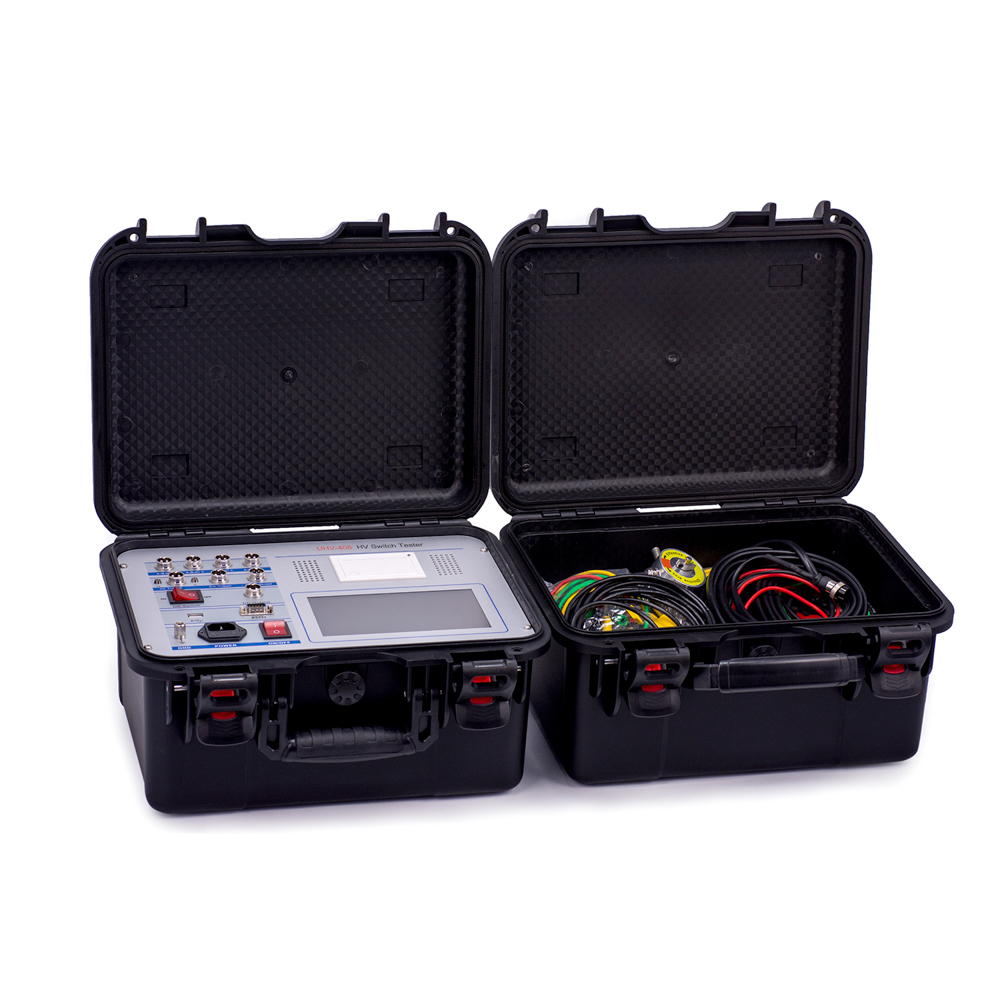

Simply put, a switch characteristic tester is like a professional equipment used for "checking" circuit breakers. It can accurately measure a series of key electrical characteristic parameters of the circuit breaker during the closing and opening process, such as closing time, opening time, bounce time, contact resistance, coil power consumption, and so on. These data are direct evidence for judging the performance of circuit breakers.
What are the 'behind the scenes drivers' that affect performance?
There are many factors that affect the characteristics of circuit breakers, which can be roughly divided into several categories:
Structural design: The damping and wear degree of the mechanical transmission part of different circuit breaker structures will affect the operating speed and stability.
Operating mechanism: The performance degradation of spring energy storage mechanism and electromagnetic operating mechanism, as well as spring fatigue, can all lead to insufficient or excessive operating torque.
Environmental factors: Temperature, humidity, dust, and other environmental changes may affect the viscosity of lubricating oil and the degree of oxidation of contacts.
Aging and wear: After long-term operation, contact erosion, insulation aging, and mechanical component wear are inevitable.
Mastering the 'artifact' to make testing twice the result with half the effort
Faced with such a complex testing task, an excellent switch characteristic tester becomes particularly important. It not only provides accurate data, but also greatly simplifies the testing process. There are many high-performance testing devices emerging on the market, which usually have the following characteristics:
High precision measurement: capable of capturing microsecond level time parameters and milliohm level contact resistance.
Intelligent operation: user-friendly interface, easy operation, automatic generation of test reports, saving the trouble of manual recording.
Multi functional integration: Multiple testing projects are integrated, and one device can complete most of the circuit breaker performance evaluations.
Powerful data management: supports data storage, querying, and analysis, facilitating trend prediction and device maintenance.
It is worth mentioning that Wuhan UHV Power Technology Co., Ltd. has been deeply involved in this field for many years, and its developed power testing equipment enjoys a high reputation in the industry. Their products have won the trust of a large number of users with their excellent performance and stable reliability.
How can we do better? Starting from the 'head'
To better conduct circuit breaker characteristic testing, the following aspects can be taken into consideration:
Understanding the principle of the equipment: A deep understanding of the working principle and the meaning of various parameters of your switch characteristic tester is necessary to more accurately interpret the test results.
Standardized operating procedures: Strictly follow the equipment manual and circuit breaker testing procedures to ensure the effectiveness and comparability of the testing.
Regular calibration and maintenance: Regularly calibrate and maintain testing equipment to ensure its measurement accuracy.
Combining actual operating conditions: Combining test data with the actual operating conditions of the circuit breaker for comprehensive analysis and making more informed maintenance decisions.
Pay attention to industry development: Pay attention to the updates of power equipment testing technology and new equipment, and continuously improve one's professional skills.
Frequently Asked Questions (FAQ)
Q: What are the operating characteristics of a circuit breaker? A: The operating characteristics of a circuit breaker refer to the motion characteristics and electrical parameters of its mechanical components during the closing and opening processes, and are important indicators for measuring the performance of the circuit breaker.
Q: What parameters does the switch characteristic tester mainly measure? A: Mainly including closing time, opening time, bounce time, contact resistance, coil power consumption, insulation resistance, etc.
Q: Why do circuit breakers need to undergo characteristic testing? A: Regular testing helps to promptly identify potential faults and hazards in circuit breakers, ensuring the safe and stable operation of the power system and avoiding unnecessary power outages.
Q: What are the advantages of the testing equipment of Wuhan UHV Power Technology Co., Ltd? A: The equipment of Wuhan UHV Power Technology Co., Ltd. is known for its high precision, high reliability, and ease of use, which can meet the testing needs of various complex working conditions.
Q: How to choose a suitable switch characteristic tester? A: When choosing, factors such as testing accuracy, functional integration, ease of operation, brand reputation, and after-sales service should be considered.
